Engineering Overview
YOLO TV systems are modular, commercial-grade direct-view LED panel systems engineered for permanent residential and commercial integration.
Modular Direct-View LED Cabinet System
Each YOLO TV system consists of individual LED cabinet modules that form a seamless display surface. Panels are precision-manufactured with sub-1mm tolerances and front-serviceable components.
Unlike consumer televisions, these systems are designed for permanent integration into residential architecture with consideration for structural load, thermal management, and long-term serviceability.
Key Engineering Characteristics
- Sub-millimeter alignment tolerances
- Front-serviceable components
- Structural mounting frame integration
- Dedicated processor architecture
- Thermal management engineered for indoor and outdoor environments
Unlike Consumer Televisions, These Systems Are Designed For:
- Structural load planning
- Electrical rough-in coordination
- AV integration during construction
- Long-term serviceability
System Classification
Structural & Mounting Requirements
Proper structural support and mounting systems are critical for long-term performance and safety.
Structural Backing & Reinforcement
Indoor LED walls require structural backing rated for 4–6 lbs/sq ft depending on cabinet type and pixel pitch. Backing must be installed during framing stage.
| Screen Size | Panel Weight | Backing Required |
|---|---|---|
| 115"–138" | 4–6 lbs/sq ft | ¾" plywood or 2x6 blocking |
| 158"–220" | 4–6 lbs/sq ft | Double 2x6 blocking, 16" o.c. |
| 220"–317"+ | 4–6 lbs/sq ft | Steel frame or engineered backing |
Note: All client-built structures in seismic zones 3–4 should be built to engineer-stamped drawings specifications.
Weather & Wind Load
YOLO TV outdoor systems are IP65-IP68 rated to resist harsh weather. Each module is crafted with aluminum and carbon fiber and engineered wind-load resistant.
Wind Load Resistance
Engineered for 90–180+ mph depending on location. Structure requires wind load calculations per local code.
Thermal Management
Active cooling systems required. Internal temperature: -20°F to 120°F ambient.
Drainage & Moisture
Integrated drainage channels and moisture barriers prevent water accumulation.
Corrosion Protection
Marine-grade aluminum, carbon fiber and sealed enclosures suitable for coastal installations.
Power & Electrical Requirements
Dedicated circuits and surge protection are required for all installations.
Voltage, Amperage & Circuit Requirements
| System Size | Voltage | Max Amperage | Circuit Required |
|---|---|---|---|
| 108"–138" | 120V / 240V | 30A/20A | Dedicated circuit |
| 158"–202" | 240V | 20–30A | Dedicated 30A circuit |
| 220"–317"+ | 240V | 30–50A | Dedicated 50A circuit |
Recommended Electrical Components
- Dedicated circuit breaker (no shared loads)
- Whole-system surge protection (TVSS)
- Conduit routing from panel to equipment location
- Ground fault protection for outdoor installations
- Emergency disconnect within 10 ft of display
Data & Signal Requirements
Proper signal infrastructure ensures optimal display performance and long-term reliability.
Cat6 & Fiber Recommendations
YOLO TV systems require high-bandwidth signal paths to support 4K/8K content, HDR, and high refresh rates.
| Cable Type | Max Distance | Recommended Use |
|---|---|---|
| Cat6/Cat6a | 300 ft | Control systems, network integration |
| Fiber (Cat6 over fiber) | 1,000+ ft | Long runs, outdoor installations |
Signal Flow Path
Source (Media Player, Cable Box, Streaming Device) → Video Processor → LED Controller → LED Panels
All YOLO TV systems include a dedicated video processor for signal conversion, scaling, and color calibration.
Rise™ Lift System Engineering
Automated lift and concealment systems require detailed coordination during design and construction phases.
Vault Construction & Drainage
The Rise™ system deploys LED displays from a concealed below-grade vault. Vault construction requires:
Vault Dimensions
Vault dimensions dependent upon size of TV system.
Drainage System
Perimeter drainage channel with slope to sump or daylight.
Power & Control
Dedicated 240V circuit for TV system. 120V circuit for lift motor.
Linear Actuator
Heavy-duty actuator system with 3"–36" travel. Rated for 500+ lbs panel weight. Emergency manual override included.
Critical Coordination Considerations
Rise™ installations require coordination with:
- Structural engineer (vault load calculations)
- Civil engineer (drainage design)
- Landscape architect (socket cover/cladding)
- Electrical contractor (power and control)
- Automation integrator (Control4, Crestron, Savant)
Rotational Lift System
Adds 180° rotation capability to vertical lift deployment. Enables dual viewing zones from a single display.
Requires additional structural engineering for rotational load and wind resistance. Mechanical joint rated for 1,000+ cycles. Rotation speed adjustable 5–30 seconds per 180° rotation.
Ideal for: Pool + patio configurations, outdoor kitchen + lounge layouts, multi-direction entertainment spaces.
Mobile Lift System
Self-contained mobile structure providing Rise™ functionality without permanent in-ground vault installation.
Base footprint: 8' × 4' × 6'H (varies by screen size). Steel frame construction with powder-coated finish. Integrated power distribution and control. Weatherproof enclosure.
Designed for: High-end rental properties, event-driven entertainment, rooftop terraces, properties where permanent vaulting is not feasible.
Note: Requires 240V power connection and level surface. Optional anchor points for high-wind applications.
Viewing Distance & Pixel Pitch
Proper screen size and pixel pitch selection depends on viewing distance and content type.
Why Partner with YOLO TV?
Residential Viewing Distance Guidelines
| SCREEN SIZE | MIN DISTANCE | IDEAL DISTANCE | TYPICAL ROOM |
|---|---|---|---|
| 108" | 8 ft | 7–11 ft | Home Office |
| 115" | 8 ft | 9–12 ft | Media Room |
| 138" | 9 ft | 11–14 ft | Living Room |
| 158" | 10 ft | 13–18 ft | Great Room |
| 202" | 14 ft | 16–20 ft | Outdoor Patio |
| 248"+ | 18 ft | 23–30 ft | Estate Outdoor |
Pixel Density & Viewing Clarity
| PIXEL PITCH | MIN DISTANCE | IDEAL USE CASE |
|---|---|---|
| 0.9 mm | 3–6 ft | Home Office, Close Viewing |
| 1.25 mm | 4–7 ft | Living Room, Media Room |
| 1.5 mm | 5–8 ft | Indoor Theater, Close Seating |
| 1.9 mm | 7–10 ft | Great Room, Standard Viewing |
| 2.6 mm | 10–14 ft | Mixed Indoor/Outdoor |
| 3.9 mm | 14+ ft | Large Outdoor Installations |
Note: Outdoor installations typically require greater viewing distance due to higher brightness levels (4,500–6,500+ nits) and wider layout considerations.

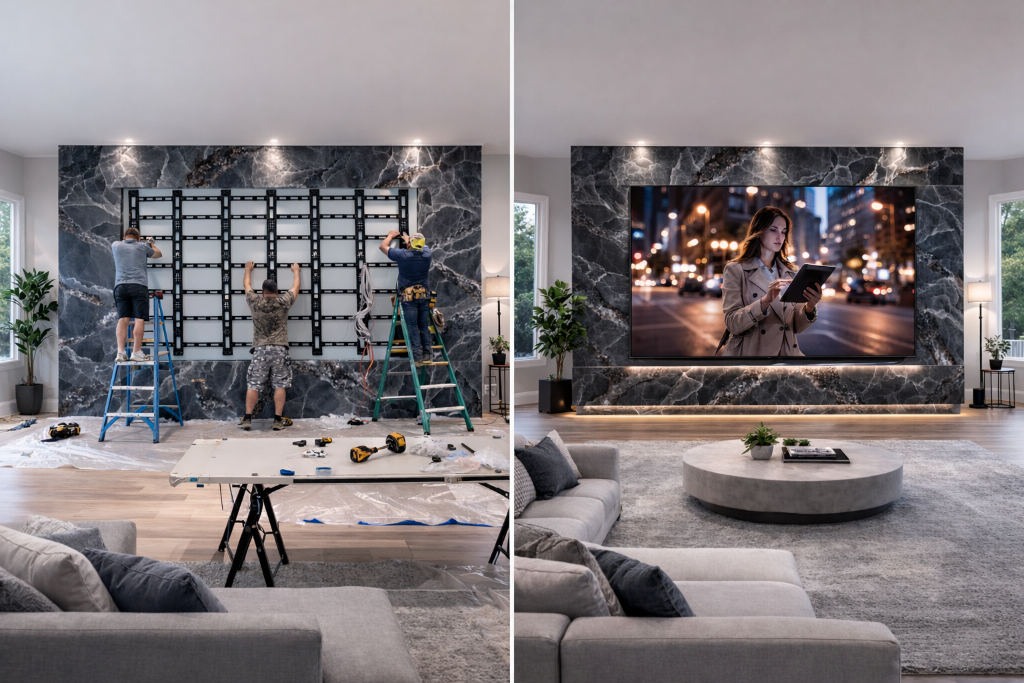

Install Technician demonstrates Manual Rotation Mounting Method
Installation Process
Every YOLO TV installation follows a structured five-phase process from design through commissioning.
Design Review
Initial consultation with design team to review architectural plans, viewing distance, structural requirements, and integration scope. Site visit if required. Preliminary system sizing and specifications provided.
Rough-In Coordination
Detailed rough-in drawings provided showing structural backing, electrical requirements, conduit routing, and equipment room layout. Coordination with GC, electrical contractor, and AV integrator.
Structural Verification
Pre-installation site inspection to verify backing, power, and signal infrastructure meets specifications. Final measurements and mounting layout confirmed.
Installation
Professional installation team mounts frame, installs YOLO TV panels, connects inter-power and inter-signal, and completes physical integration. Installations typically require 1–2 days.
Calibration & Commissioning
System calibration including color accuracy, brightness uniformity, and signal verification. Integration with automation systems (Control4, Crestron, Savant). Client training and documentation handoff.
Timeline Considerations
- YOLO TV delivery: 8–12 weeks from order confirmation (depending on product type)
- Installation should be scheduled after pre-install checklist is completed + drywall/finish work complete (indoor) or hardscape complete (outdoor)
COMPLETED PROJECTS
Installed Across North & Central America
Residential installations from California to Florida, including hurricane zones, alpine environments, desert climates, and coastal salt-air regions.
Warranty & Service
All YOLO TV systems include comprehensive five-year residential warranty with direct technical support.
5-Year Peace of Mind Parts Warranty
Every YOLO TV residential display is backed by our industry-leading 5-Year Peace of Mind Parts Warranty.
Component Coverage
Covered YOLO TV components are protected for five years under our Peace of Mind Parts Warranty.
Direct Technical Support
Technical support and service coordination are available through YOLO TV specialists.
Modular Serviceability
Many parts can be replaced individually without replacing the entire display.
Service & Labor
On-site service, technician travel, shipping, and third-party labor may be separate unless included in your agreement.
Warranty Note: Coverage applies to covered YOLO TV components. Additional service costs may apply unless specifically included in your agreement.
